Milling tools

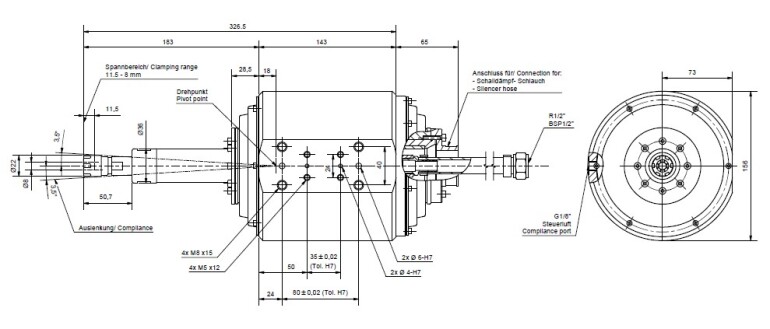

Compliance radial

milling tool FLEXICUT 1000 for economical deburring

Article-No.	3005.300
Power	1.3 kW (1.74 hp)
Idling speed	25'000 rpm
Rated speed	20'000 rpm
Compliance radial in all directions	± 3.5° / ± 13 mm (at collet)
Compliance torque	10 Nm (7.4 ft lbs) at 6 bar (87 psi)
Compliance force	60 N (13.5 lbs) at 6 bar (87 psi) (at collet)
Feed forward rate	10 - 300 mm/sec.
Air consumption	22 l/s (46.6 cfm)
Collet	Ø 8 mm, 5/16
Weight	12 kg (26.5 lb)
