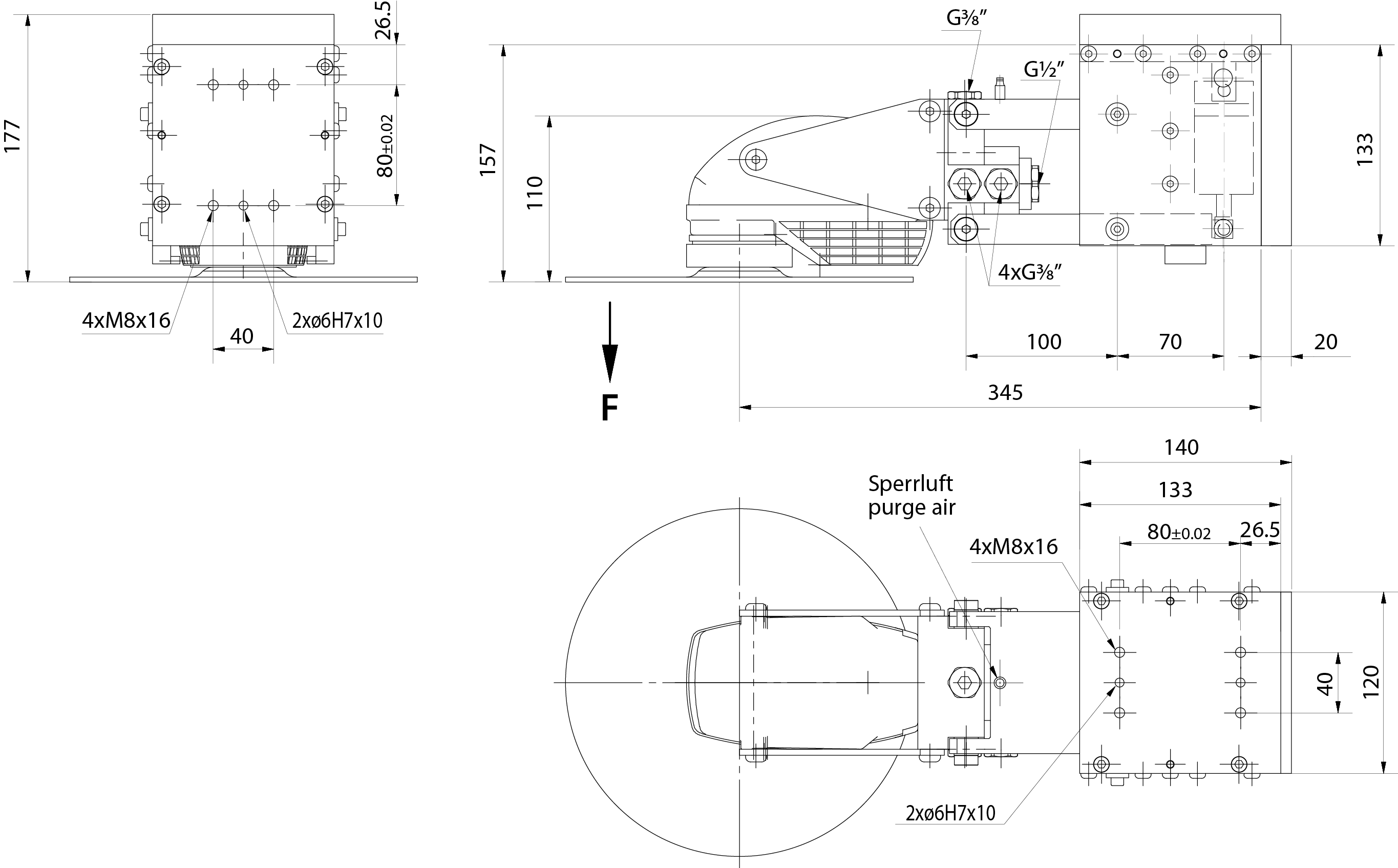

Angle-Grinder Serie 400
Angle grinding tools
Compliance radial
Angle grinding tool ANGLE-GRINDER 400 for economical deburring and cast iron cleaning
Type | ANGLE-GRINDER 410 | ANGLE-GRINDER 420 |
Article-No. | 3077.211 | 3077.221 |
Powered | 4.5 kW | 4.5 kW |
Idling speed | 8'500 rpm | 6'600 rpm |
Compliance movement | 34 mm (axial) | 34 mm (axial) |
Compliance force (F)* with 2 Cylinder at 6 bar | 123 N | 114.4 N |
Feed forward rate | 50 - 200 mm/s | 50 - 200 mm/s |
Air consumption | 60 l/s | 60 l/s |
Wheel centring | Ø 7/8 | Ø 7/8 |
Wheel diameter | up to 180 mm | up to 230 mm |
Weight | 8.4 kg | 8.4 kg |
* without dead load
