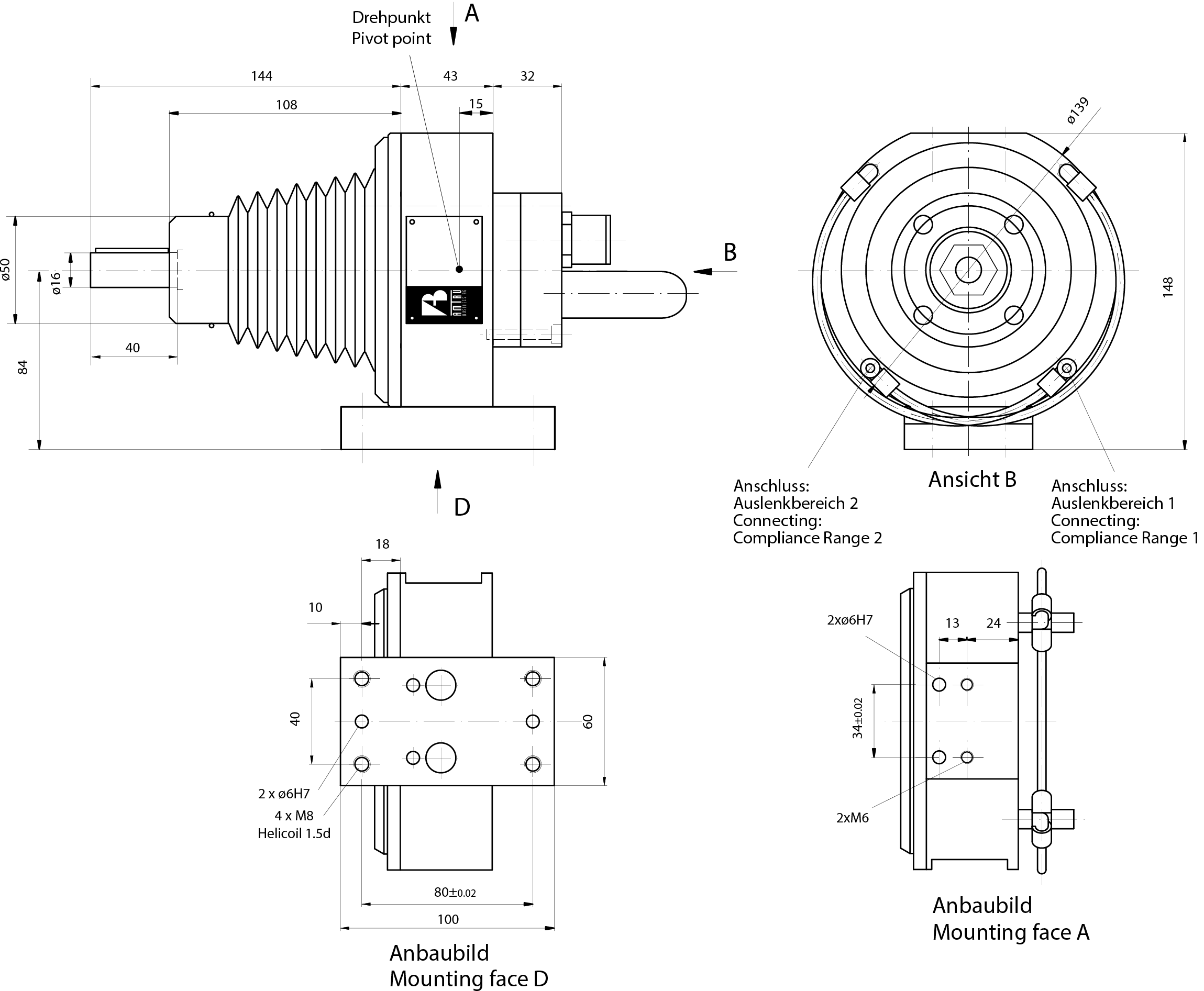

Flexfinisher Serie 200
Type
FLEXFINISHER 210
FLEXFINISHER 215
FLEXFINISHER 220
FLEXFINISHER 225
Article-No.
3180.210
3180.215
3180.220
3180.225
Power
840 W
840 W
840 W
620 W
Idling speed
21'000 rpm
6'700 rpm
4'200 rpm
2'550 rpm
Rated speed
10'800 rpm
3'300 rpm
2'100 rpm
1'280 rpm
Compliance (radial)
± 3.2°
± 16 mm an Spannzange
± 3.2°
± 16 mm an Spannzange
± 3.2°
± 16 mm an Spannzange
± 3.2°
± 16 mm an Spannzange
Compliance torque with connection 1
0 ... 15 Nm
0 ... 15 Nm
0 ... 15 Nm
0 ... 15 Nm
Compliance torque with connection 1 and 2
5 ... 30 Nm
5 ... 30 Nm
5 ... 30 Nm
5 ... 30 Nm
Max. Compliance force at 6 bar
approx. 109 N
approx. 109 N
approx. 109 N
approx. 109 N
Feed forward rate
50 - 200 mm/s
50 - 200 mm/s
50 - 200 mm/s
50 - 200 mm/s
Air consumption
17 l/s
17 l/s
17 l/s
17 l/s
Moto shaft
Ø16 x 40 mm
Ø16 x 40 mm
Ø16 x 40 mm
Ø16 x 40 mm
Weight
6.7 kg
6.7 kg
6.7 kg
6.7 kg
